c逆向之分支与循环

`if`跳转

特征

不满足向下跳转，汇编的跳转条件和源码中的逻辑取反。
if-else->cmp-比较取反+jmp-标签
有可能使用return优化if最后的jmp跳转
单分支很难优化，双分支、多分支优化空间大。

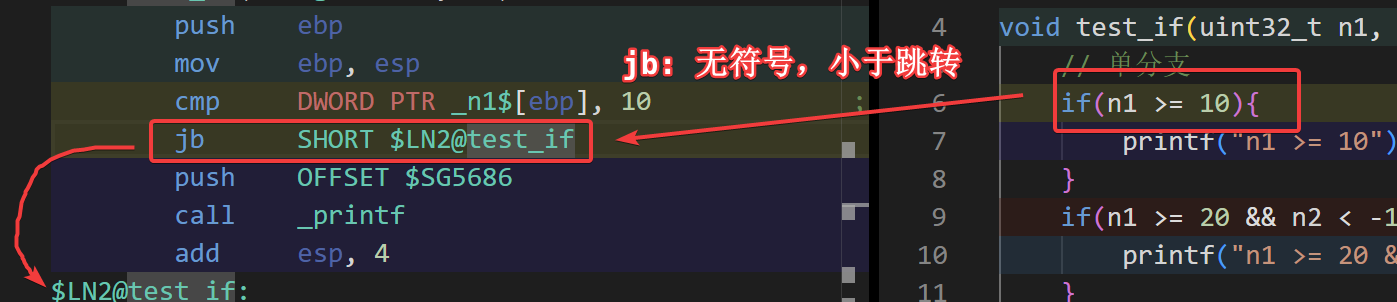

单分支

#include <cstdio>
#include <cstdint>

void test_if(uint32_t n1, int32_t n2){
    // 单分支
    if(n1 >= 10){
        printf("n1 >= 10, n1: %u", n1);
    }
    if(n1 >= 20 && n2 < -15){
        printf("n1 >= 20 && n2 < -15, n1: %u, n2: %d", n1, n2);
    }
    if(n1 >= 30 || n2 >= -15){
        printf("n1 >= 20 && n2 < -15, n1: %u, n2: %d", n1, n2);
    }
    return;
}

unsigned __int64 `__local_stdio_printf_options'::`2'::_OptionsStorage DQ 01H DUP (?) ; `__local_stdio_printf_options'::`2'::_OptionsStorage
`string' DB 'n'
  DB '1 >= 20 && n2 < -15, n1: %u, n2: %d', 00H ; `string'
`string' DB 'n1 >= 10, n1: %u', 00H ; `string'

_n1$ = 8 ; size = 4
_n2$ = 12 ; size = 4
void test_if(unsigned int,int) PROC ; test_if, COMDAT
  push esi
  mov esi, DWORD PTR _n1$[esp]
  push edi
  cmp esi, 10 ; 0000000aH
  jb SHORT $LN2@test_if
  push esi
  push OFFSET `string'
  call _printf
  add esp, 8
$LN2@test_if:
  mov edi, DWORD PTR _n2$[esp+4]
  cmp esi, 20 ; 00000014H
  jb SHORT $LN3@test_if
  cmp edi, -15 ; fffffff1H
  jge SHORT $LN3@test_if
  push edi
  push esi
  push OFFSET `string'
  call _printf
  add esp, 12 ; 0000000cH
$LN3@test_if:
  cmp esi, 30 ; 0000001eH
  jae SHORT $LN5@test_if
  cmp edi, -15 ; fffffff1H
  jl SHORT $LN4@test_if
$LN5@test_if:
  push edi
  push esi
  push OFFSET `string'
  call _printf
  add esp, 12 ; 0000000cH
$LN4@test_if:
  pop edi
  pop esi
  ret 0
void test_if(unsigned int,int) ENDP ; test_if

跳转语句取反后是原本的if判断条件。

&&连接

每个表达式都取反。

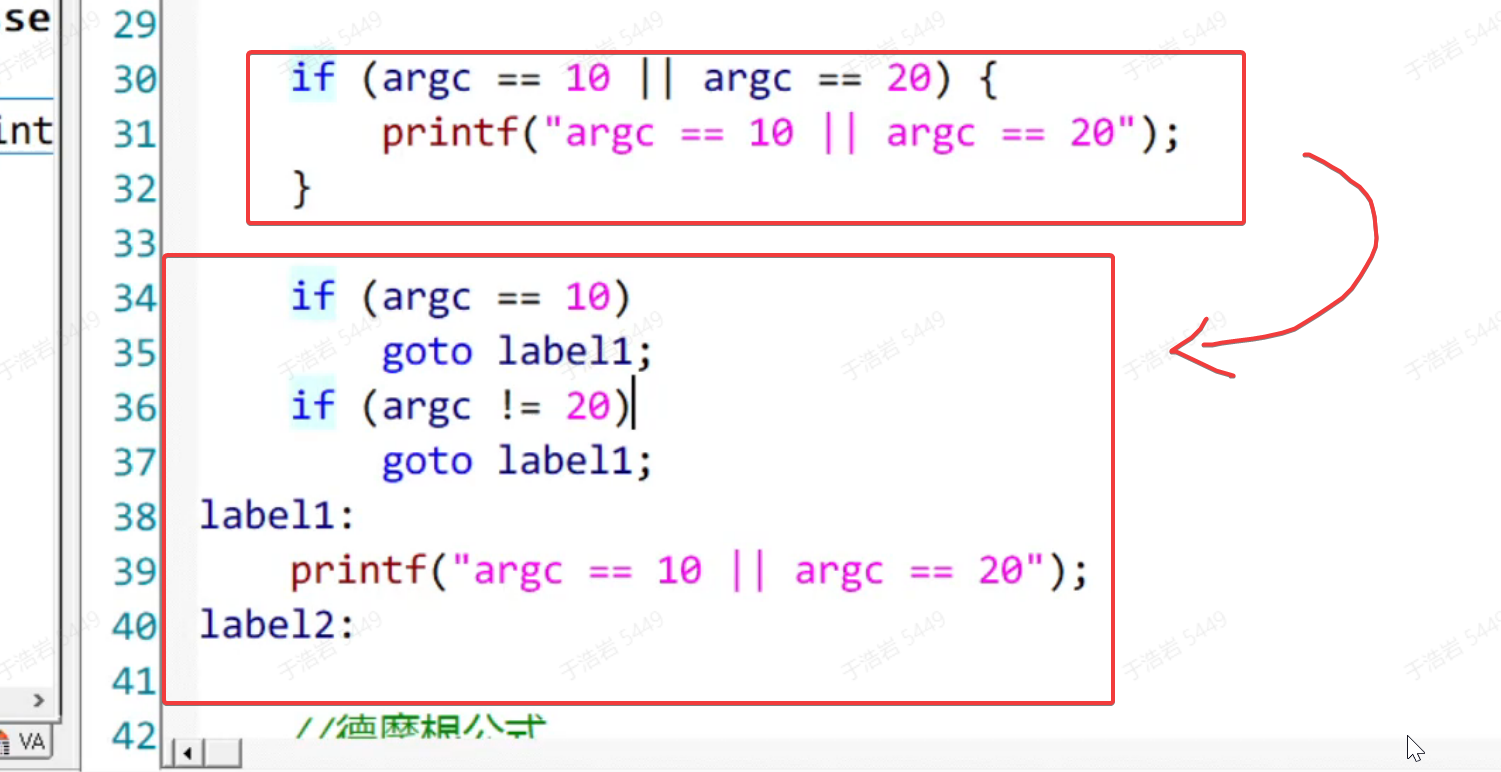

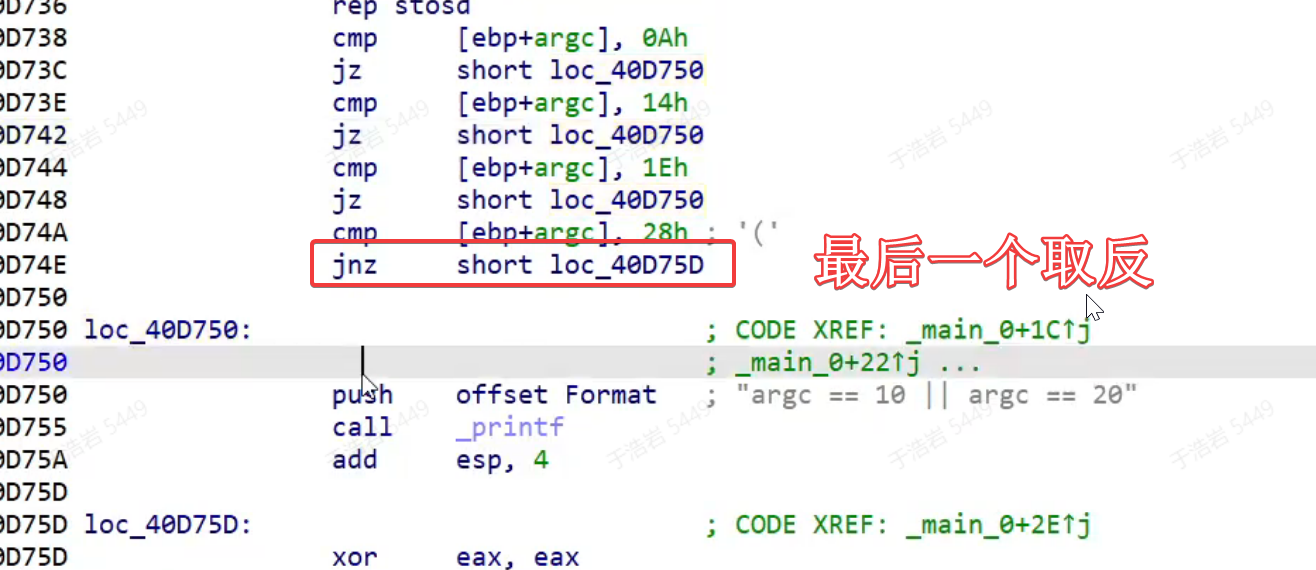

||定式

最后一个||中的条件取反。

逆向还原时，最后一个条件取反

双分支

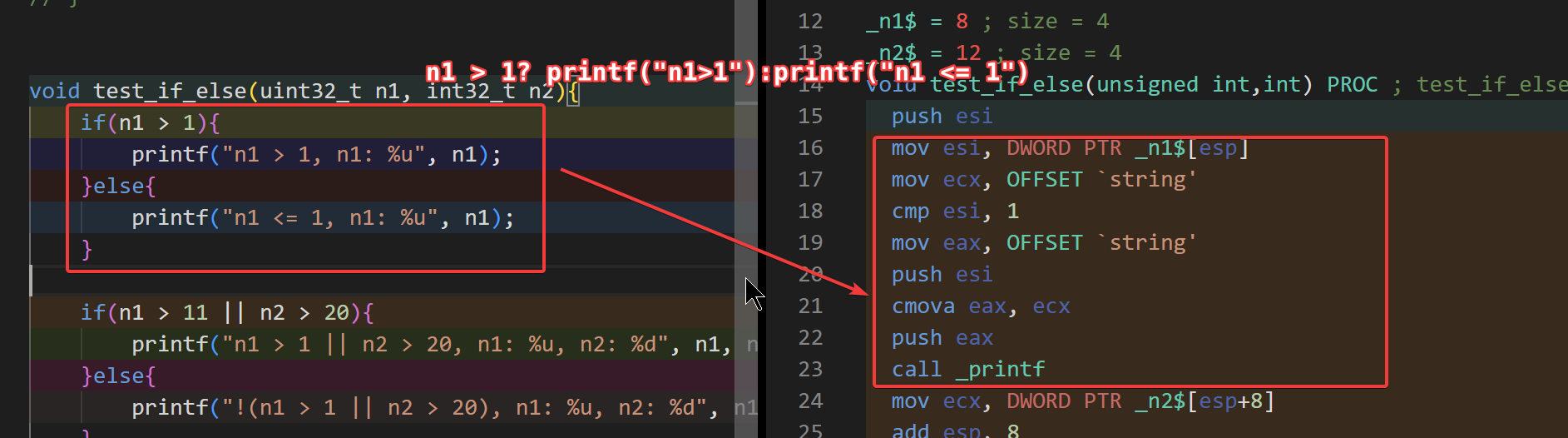

三目运算符优化

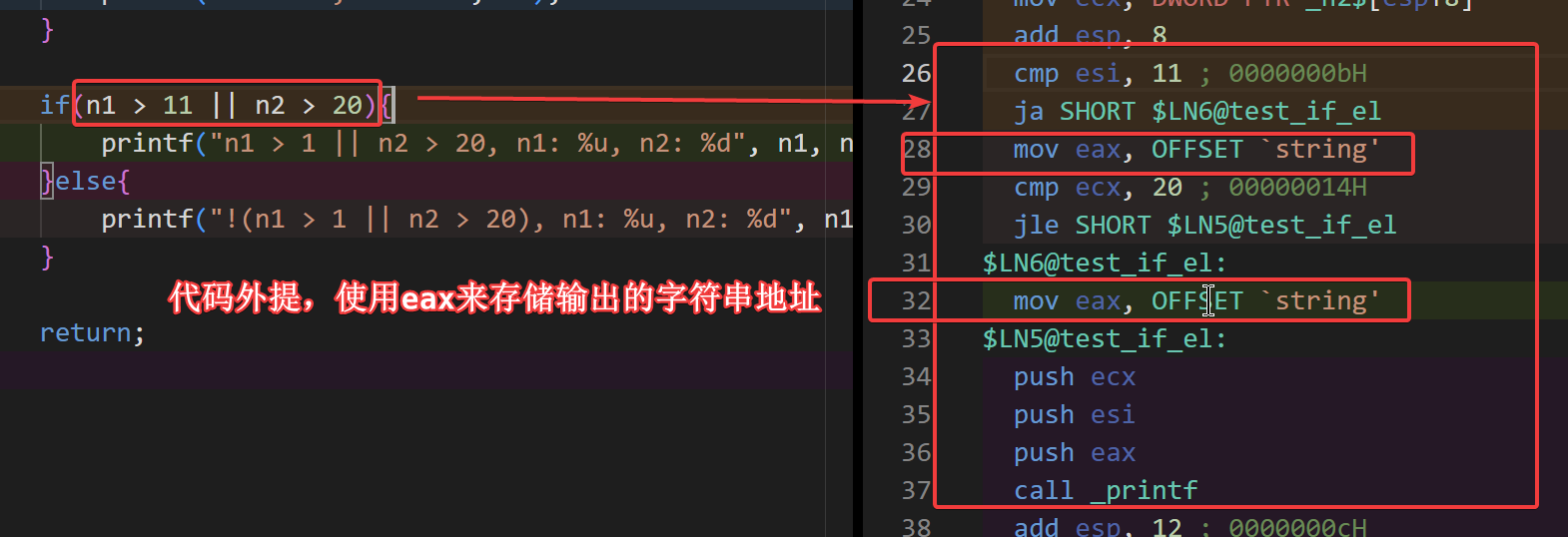

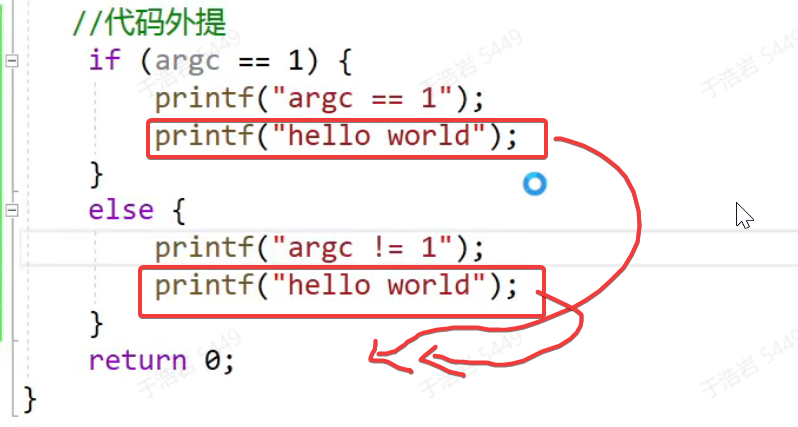

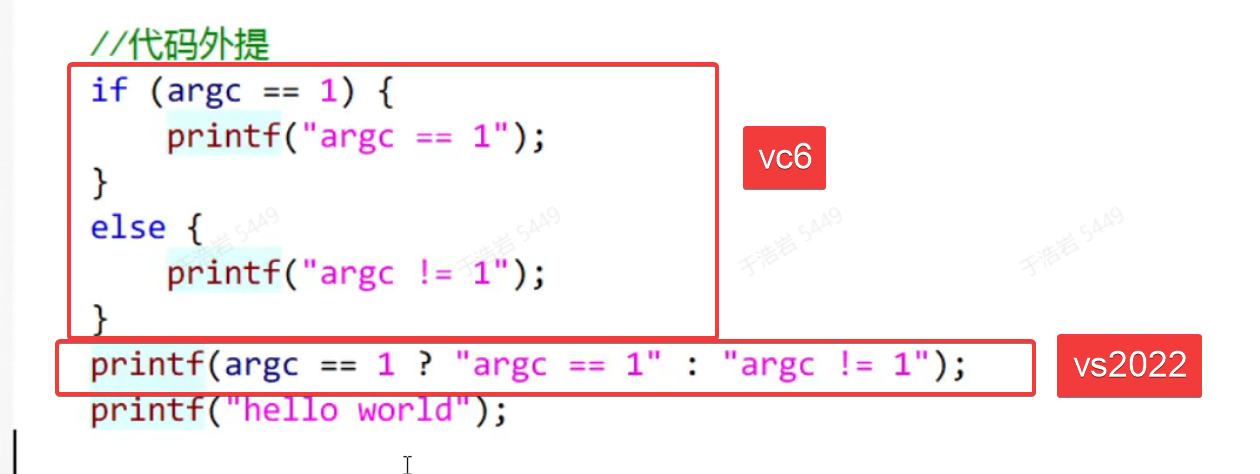

代码外提-体积优化

提出公共部分，逆向时不需要管。

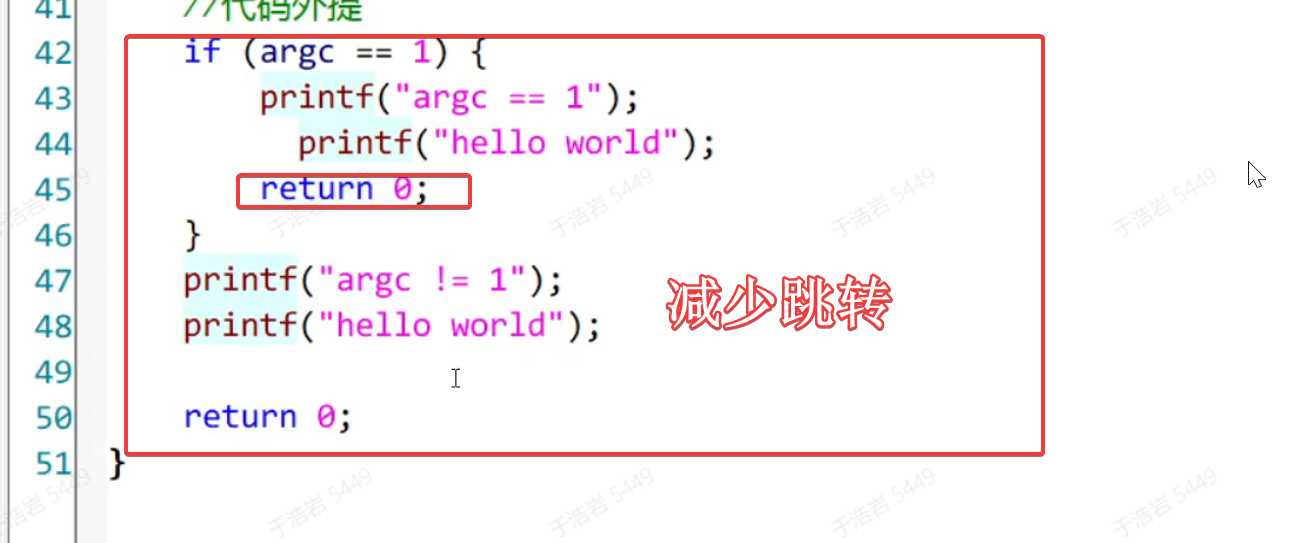

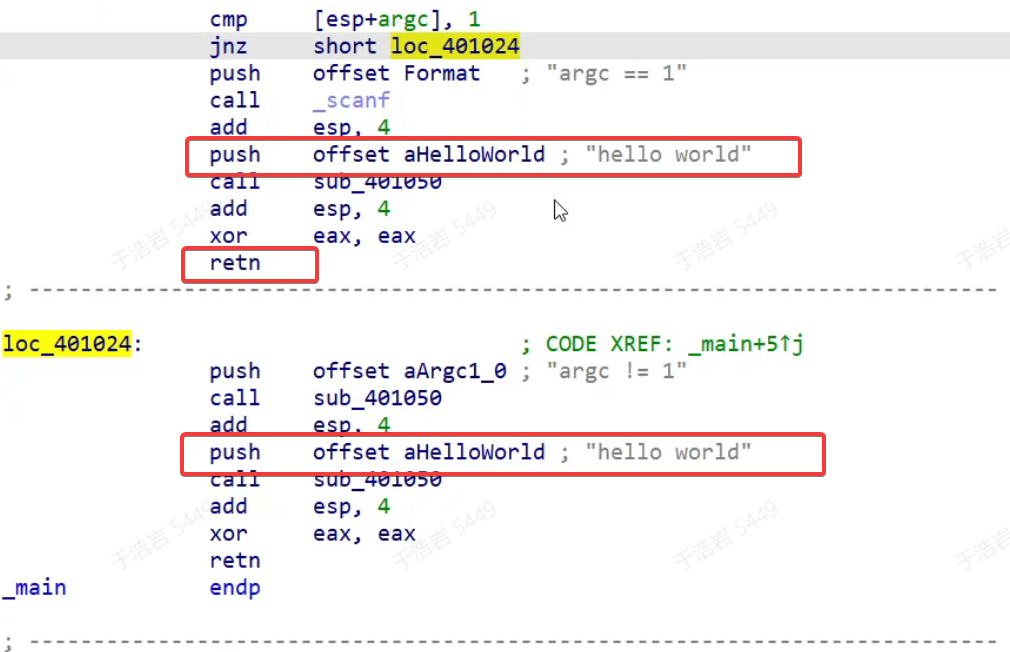

减少跳转

?_OptionsStorage@?1??__local_stdio_printf_options@@9@4_KA DQ 01H DUP (?) ; `__local_stdio_printf_options'::`2'::_OptionsStorage
??_C@_08IDOHMDJP@not?5all?$CB@ DB 'not all!', 00H ; `string'
??_C@_0BE@CAHAPFEI@n1?5?$DO?51?5?$CG?$CG?5n2?5?$DM?5100?6@ DB 'n1 > 1 && '
  DB 'n2 < 100', 0aH, 00H ; `string'
??_C@_0BE@MPEFODFA@n1?5?$DO?$DN?55?5?$HM?$HM?5n2?5?$DM?510?6@ DB 'n1 >= 5'
  DB ' || n2 < 10', 0aH, 00H ; `string'
??_C@_0BG@KGLBGBHM@n1?5?$DO?$DN?510?5?$HM?$HM?5n2?5?$DM?5?915?6@ DB 'n1 >'
  DB '= 10 || n2 < -15', 0aH, 00H ; `string'

_n1$ = 8 ; size = 4
_n2$ = 12 ; size = 4
?test_if_else2@@YAXIH@Z PROC ; test_if_else2, COMDAT
  mov eax, DWORD PTR _n1$[esp-4]
  cmp eax, 10 ; 0000000aH
  jae SHORT $LN4@test_if_el
  mov ecx, DWORD PTR _n2$[esp-4]
  cmp ecx, -15 ; fffffff1H
  jl SHORT $LN4@test_if_el
  ; if(n1 >= 10 || n2 < -15) {printf("n1 >= 10 || n2 < -15\n"); return;}

  cmp eax, 5
  jae SHORT $LN7@test_if_el
  cmp ecx, 10 ; 0000000aH
  jl SHORT $LN7@test_if_el
  ; if(n1 >= 5 || n2 < 10) {printf("n1 >= 5 || n2 < 10\n"); return;}

  cmp eax, 1
  jbe SHORT $LN8@test_if_el
  cmp ecx, 100 ; 00000064H
  jge SHORT $LN8@test_if_el
  ; if(n1 > 1 && n2 < 100) {printf("n1 > 1 && n2 < 100\n"); return;}

  mov eax, OFFSET ??_C@_0BE@CAHAPFEI@n1?5?$DO?51?5?$CG?$CG?5n2?5?$DM?5100?6@
  push eax
  call _printf

  ; printf("not all!");
  ; return;

  pop ecx
  ret 0
$LN8@test_if_el:
  mov eax, OFFSET ??_C@_08IDOHMDJP@not?5all?$CB@
  push eax
  call _printf
  pop ecx
  ret 0
$LN7@test_if_el:
  mov eax, OFFSET ??_C@_0BE@MPEFODFA@n1?5?$DO?$DN?55?5?$HM?$HM?5n2?5?$DM?510?6@
  push eax
  call _printf
  pop ecx
  ret 0
$LN4@test_if_el:
  mov eax, OFFSET ??_C@_0BG@KGLBGBHM@n1?5?$DO?$DN?510?5?$HM?$HM?5n2?5?$DM?5?915?6@
  push eax
  call _printf
  pop ecx
  ret 0
?test_if_else2@@YAXIH@Z ENDP ; test_if_else2
