前言
PE文件的内存加载通常用于恶意软件的隐藏或者壳程序的加压缩执行。本文将使用Rust在x86架构的Windows系统中加载一个PE文件到内存中，并通过节表映射、IAT修复、重定位修复后正常运行。 本次实现所使用的依赖有：
windows，微软官方提供的Windows API库。object，提供了一些PE中的数据结构。- 可选
thiserror，用于自定义错误类型。
步骤
- 读取PE文件到内存
- 计算映像大小并申请空间
- 拷贝PE文件头到内存
- 遍历节表，将节表数据映射到内存
- 修复IAT表
- 修复重定位表
- 修复节区属性
- 跳转到入口点执行
首先定义我们的函数签名：
pub fn load_exe(exe_path: &str, _args: Option<Vec<&str>>) -> Result<(), LoadPEError>;LoadPEError是我们自定义的错误类型，用于返回错误信息。
1. 读取PE文件到内存
let data = fs::read(exe_path)?;#[cfg(target_arch = "x86")]let file: PeFile32 = pe::PeFile::parse(&data[..])?;#[cfg(target_arch = "x86_64")]let file: PeFile64 = pe::PeFile::parse(&data[..])?;2. 计算映像大小并申请空间
let image_size = file.nt_headers().optional_header.size_of_image.get(endian::LittleEndian); // 3. 为镜像分配内存 // 分配的内存，后续需要修改内存属性 // 对齐值一定要写0x1000，否则会出现问题 let layout = Layout::from_size_align(image_size as usize, 0x1000)?; let buf = unsafe { alloc(layout) }; if buf.is_null() { return Err(LoadPEError::MemoryAllocFailed); } dbg!("分配的内存地址: {:?}", buf);需要注意这里的对齐值，对齐值最好使用PE文件中的节对齐值。在一般情况下，节对齐值都是一个内存页的大小，所以这里方便，直接写定了0x1000。
3. 拷贝PE文件头到内存
为了PE文件的正常解析，我们需要原封不动的拷贝PE文件头到内存。从文件的0偏移处开始拷贝，拷贝的大小为可选头中的SizeOfHeaders字段值。
// 进行数据的拷贝。{ // 拷贝整个头部 let head_size = file.nt_headers().optional_header.size_of_headers.get(endian::LittleEndian); let head_data = &data[..head_size as usize]; unsafe { std::ptr::copy_nonoverlapping(head_data.as_ptr(), buf, head_size as usize); }}4. 遍历节表，将节表数据映射到内存
{ // 分块拷贝节区数据 let section_alignment = file.nt_headers().optional_header.section_alignment(); let file_alignment = file.nt_headers().optional_header.file_alignment(); for section in file.sections() { // 如果节区没有映射到内存中，那么就不需要拷贝 if section.pe_section().size_of_raw_data.get(LittleEndian) == 0 { continue; } // VA对齐值 let va = align_to!( section.pe_section().virtual_address.get(LittleEndian), section_alignment ); // pointer_to_raw_data对齐值 let pointer_to_raw_data = align_to!( section.pe_section().pointer_to_raw_data.get(LittleEndian), file_alignment ); // size_of_raw_data对齐值 let size_of_raw_data = align_to!( section.pe_section().size_of_raw_data.get(LittleEndian), file_alignment ); // 从data[pointer_to_raw_data..pointer_to_raw_data + size_of_raw_data]中拷贝数据到buf[va..va + size_of_raw_data] let section_data = &data [pointer_to_raw_data as usize..(pointer_to_raw_data + size_of_raw_data) as usize]; unsafe { let dst = (buf as usize + va as usize) as *mut u8; std::ptr::copy(section_data.as_ptr(), dst, size_of_raw_data as usize); }; }}这部分需要注意：
size_of_raw_data需要对齐到file_alignment。- 如果
size_of_raw_data为0，那么这个节不需要映射到内存中。 VirtualAddress需要对齐到section_alignment。
5. 修复IAT表
IAT表的修复需要我们遍历导入表结构，所以我们必须先检查是否有导入表。正常的程序都会存在导入表。
// 修复IAT表{ // 获取导入表的数据目录 let import_directory = file.data_directory(IMAGE_DIRECTORY_ENTRY_IMPORT); if import_directory.is_none() { return Err(LoadPEError::ExecutableWithoutImportTable); } let base_import_table_rva = import_directory.unwrap().virtual_address.get(LittleEndian); let mut import_table_index = 0; loop { let descriptor = unsafe { &*((buf as usize + base_import_table_rva as usize + import_table_index * std::mem::size_of::<object::pe::ImageImportDescriptor>()) as *const object::pe::ImageImportDescriptor) }; if descriptor.original_first_thunk.get(LittleEndian) == 0 { break; } let module_name_rva = descriptor.name.get(LittleEndian); let p_module_name = (buf as usize + module_name_rva as usize) as *const u8; // 使用LoadLibraryA加载模块 let h_module = unsafe { LoadLibraryA(PCSTR::from_raw(p_module_name)) .map_err(|err| LoadPEError::LoadLibraryError(err))? }; if h_module.is_invalid() { // 这个逻辑应该走不到 unimplemented!("LoadLibraryA failed"); } // 遍历IAT表，修复IAT表 // 加载每一个方法。使用GetProcAddress，获取地址。 // 然后修复IAT表。如果其中一个环节出现问题，我们应该：释放所有加载的Module，然后返回错误 // 获取Image_thunk_data数组的首地址 let base_original_first_thunk_va = if descriptor.original_first_thunk.get(LittleEndian) != 0 { descriptor.original_first_thunk.get(LittleEndian) } else { // 如果OriginalFirstThunk不存在，则使用FirstThunk 的值 descriptor.first_thunk.get(LittleEndian) };
let base_import_address_table_va = descriptor.first_thunk.get(LittleEndian); let mut index = 0; loop { // 1. 从文件的数据中取出一个ImageThunkData let origin_thunk_data = unsafe { #[cfg(target_arch = "x86")] let thunk_data = &*((buf as usize + base_original_first_thunk_va as usize + index * std::mem::size_of::<object::pe::ImageThunkData32>()) as *const object::pe::ImageThunkData32);
#[cfg(target_arch = "x86_64")] let thunk_data = &*((buf as usize + base_original_first_thunk_va as usize + index * std::mem::size_of::<object::pe::ImageThunkData64>()) as *const object::pe::ImageThunkData64); thunk_data }; // 2. 判断是否是最后一个ImageThunkData let origin_thunk_data_value = origin_thunk_data.0.get(LittleEndian) as u64; if origin_thunk_data_value == 0 { break; } // 如果不是最后一个,现判断是序号,还是函数名 #[cfg(target_arch = "x86")] let is_ordinal = origin_thunk_data_value & 0x80000000 != 0; #[cfg(target_arch = "x86_64")] let is_ordinal = origin_thunk_data_value & 0x8000000000000000 != 0; // 函数地址指针 let function_address; if is_ordinal { // 如果最高位是1，0-15位是序号 let ordinal = origin_thunk_data_value as u16; let pstr = PCSTR(ordinal as *const u8); // 使用GetProcAddress获取函数地址 let p_function = unsafe { GetProcAddress(h_module, pstr) }; if p_function.is_none() { // 如果函数地址是null，表示获取失败 return Err(LoadPEError::GetProcAddressError(format!( "GetProcAddress failed, ordinal: {:?}", ordinal ))); } function_address = p_function.unwrap() as *const u8; } else { // 否则是名称表的RVA let name_table_rva = origin_thunk_data_value; let p_function_name = (buf as usize + name_table_rva as usize + 2) as *const u8; // 构造一个PSTR let p_function_name = PCSTR(p_function_name); // 使用GetProcAddress获取函数地址 let p_function = unsafe { GetProcAddress(h_module, p_function_name) }; if p_function.is_none() { // 如果函数地址是null，表示获取失败 return Err(LoadPEError::GetProcAddressError(format!( "GetProcAddress failed, function name: {:?}", p_function_name ))); } function_address = p_function.unwrap() as *const u8; } // 修复IAT表 // 需要获取到IAT表的地址 let iat_address = (buf as usize + base_import_address_table_va as usize + std::mem::size_of::<u32>() * index) as *mut u8; // 修复IAT表 // 将函数地址写入IAT表 如果是x86_64，需要写入8字节 // 如果是x86，需要写入4字节 unsafe { #[cfg(target_arch = "x86")] { *(iat_address as *mut u32) = function_address as u32; } #[cfg(target_arch = "x86_64")] { *(iat_address as *mut u64) = function_address as u64; } } index += 1; } import_table_index += 1; }}修复IAT时注意：
- 导入的方式是序号还是函数名。如果最高位是1，那么是序号，否则是函数名。
- 如果导入表中的ILT表不存在，那么要使用IAT表的值。
6. 修复重定位表
我们运行的程序必须存在重定位表，否则无法正常运行。如果程序不存在重定位表，则它是一个固定基址的程序。而固定基址的程序必须运行在指定的基址处。我们在分配内存的时候无法确保程序需要的基址是可用的，所以我们不支持固定基址的程序。 那么程序就必须存在重定位表，否则我们无法运行。
// 修复重定向表 { // 1. 获取重定向表的数据目录 let relocation_table_directory = file.data_directory(IMAGE_DIRECTORY_ENTRY_BASERELOC); if relocation_table_directory.is_none() { return Err(LoadPEError::NoRelocationTable); } let base_relocation_table_rva = relocation_table_directory .unwrap() .virtual_address .get(LittleEndian);
let mut relocation_offset = 0; let image_base = file .nt_headers() .optional_header .image_base .get(LittleEndian);
loop { // 读取一个IMAGE_BASE_RELOCATION let relocation = unsafe { &*((buf as usize + base_relocation_table_rva as usize + relocation_offset) as *const object::pe::ImageBaseRelocation) }; // 如果SizeOfBlock为0，表示已经到了最后一个IMAGE_BASE_RELOCATION if relocation.size_of_block.get(LittleEndian) == 0 { break; } // 获取重定位表的VirtualAddress和SizeOfBlock let virtual_address = relocation.virtual_address.get(LittleEndian); let size_of_block = relocation.size_of_block.get(LittleEndian); let base_block = base_relocation_table_rva as usize + relocation_offset + 8; let block_num = (size_of_block - 8) / 2;
for i in 0..block_num { // 读取一个TypeOffset let type_offset = unsafe { &*((buf as usize + base_block as usize + i as usize * std::mem::size_of::<u16>()) as *mut u16) }; // 高四位 let r_type = (type_offset >> 12) as u8; // 剩余12位 let r_offset = type_offset & 0x0FFF; // 需要修复的地址偏移 let offset_va = virtual_address + r_offset as u32; // 若要应用基址重定位，会计算首选基址与在其中实际加载映像的基址之间的差异。 如果在首选基址处加载映像，则差异为零，因此无需应用基址重定位。 // 修复后的值: 按类型 let reloc_offset = buf as usize - image_base as usize; // 被修复的地址: let p_address = (buf as usize + offset_va as usize) as *mut u32; let address_value = unsafe { *p_address }; match r_type { 0 => {} 1 => { // IMAGE_REL_BASED_HIGH 基址重定位在偏移量处将差值的高 16 位添加到 16 位字段。 16 位字段表示 32 位单词的高值。 // 取reloc_offset的高16位 let high = (reloc_offset >> 16) as u16; let new_address = address_value + high as u32; unsafe { *p_address = new_address; } } 2 => { // IMAGE_REL_BASED_LOW 基准重定位将差值的低 16 位加到偏移的 16 位字段。 16 位字段代表 32 位字的低半部分。 // 取reloc_offset的低16位 let low = reloc_offset as u16; let new_address = address_value + low as u32; unsafe { *p_address = new_address; } } 3 => { // 如果r_type是3，表示这个TypeOffset是一个IMAGE_REL_BASED_HIGHLOW // 这个时候需要修复一个32位的地址 let new_address = address_value + reloc_offset as u32; unsafe { *p_address = new_address; } } 10 => { // IMAGE_REL_BASED_DIR64 基址重定位将差值添加到偏移的 64 位字段。 let new_address = address_value + reloc_offset as u32; unsafe { *(p_address as *mut u64) = new_address as u64; } } _ => { // 其他的类型，暂时不支持 unimplemented!("未实现的重定位类型: {:?}", r_type); } } } // 计算下一个IMAGE_BASE_RELOCATION的偏移 relocation_offset += size_of_block as usize; } }修复重定位表需要注意：
- 先通过
TypeOffset获取r_type和r_offset。 - 根据
r_type的不同，修复地址。
7. 修复节区属性
{ let section_alignment = file.nt_headers().optional_header.section_alignment(); // 遍历节区，设置节区属性 for section in file.sections() { let va = section.pe_section().virtual_address.get(LittleEndian); // let size_of_raw_data = section.pe_section().size_of_raw_data.get(LittleEndian); let section_name = section.name().unwrap(); let virtual_size = section.pe_section().virtual_size.get(LittleEndian); let characteristics = section.pe_section().characteristics.get(LittleEndian); let section_va = buf as usize + va as usize; let section_size = align_to!(virtual_size, section_alignment);
// 设置节区属性 let protect; if characteristics & IMAGE_SCN_MEM_EXECUTE != 0 && characteristics & IMAGE_SCN_MEM_READ == 0 && characteristics & IMAGE_SCN_MEM_WRITE == 0 { protect = PAGE_EXECUTE.0; } else if characteristics & IMAGE_SCN_MEM_EXECUTE != 0 && characteristics & IMAGE_SCN_MEM_READ != 0 && characteristics & IMAGE_SCN_MEM_WRITE == 0 { protect = PAGE_EXECUTE_READ.0; } else if characteristics & IMAGE_SCN_MEM_EXECUTE != 0 && characteristics & IMAGE_SCN_MEM_READ != 0 && characteristics & IMAGE_SCN_MEM_WRITE != 0 { protect = PAGE_EXECUTE_READWRITE.0; } else if characteristics & IMAGE_SCN_MEM_EXECUTE == 0 && characteristics & IMAGE_SCN_MEM_READ != 0 && characteristics & IMAGE_SCN_MEM_WRITE == 0 { protect = PAGE_READONLY.0; } else if characteristics & IMAGE_SCN_MEM_EXECUTE == 0 && characteristics & IMAGE_SCN_MEM_READ != 0 && characteristics & IMAGE_SCN_MEM_WRITE != 0 { protect = PAGE_READWRITE.0; } else { return Err(LoadPEError::ChangeMemoryProtectFailed); } // 设置属性 let mut old_protect = PAGE_PROTECTION_FLAGS(0); println!("{section_name} va: {:x}, section_size: {:x} address: {:x} characteristics: {:x} protect: {:x}", va, section_size, section_va, characteristics, protect);
let result = unsafe { VirtualProtect( section_va as *mut _, section_size as usize, PAGE_PROTECTION_FLAGS(protect), &mut old_protect, ) }; if result.is_err() { return Err(LoadPEError::ChangeMemoryProtectFailed); } }}恢复节区属性时需要注意：
- 根据节区的
characteristics字段和设置内存保护属性的值并不是一一对应的，所以需要根据characteristics字段的值来设置内存保护属性。
8. 跳转到入口点执行

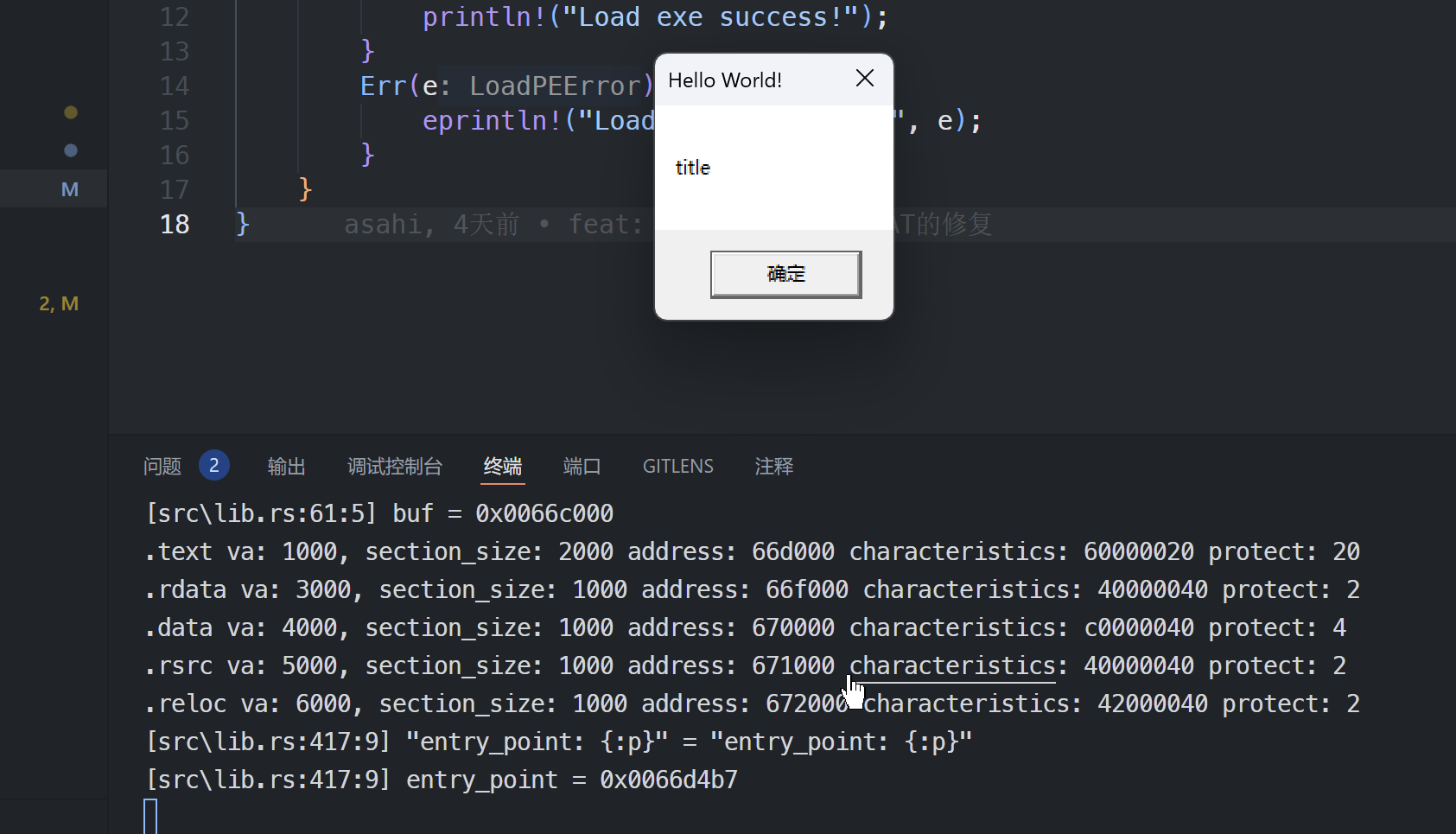

{ let entry_point = file .nt_headers() .optional_header .address_of_entry_point .get(LittleEndian); let entry_point = buf as usize + entry_point as usize; let entry_point: extern "system" fn() = unsafe { std::mem::transmute(entry_point) }; dbg!("entry_point: {:p}", entry_point); entry_point();}最后测试
use loadpe_rs::load_exe;
#[cfg(target_arch = "x86_64")]const EXE_PATH: &str = r#"tests\Testx64.exe"#;
#[cfg(target_arch = "x86")]const EXE_PATH: &str = r#"tests\Testx32R.exe"#;
fn main() { match load_exe(EXE_PATH, None) { Ok(_) => { println!("Load exe success!"); } Err(e) => { eprintln!("Load exe failed: {}", e); } }}至此一个PE文件在内存中的加载就完成了。
